open well pump set

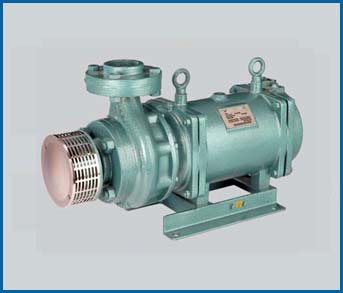

THREE PHASE OPENWELL SUBMERSIBLE MONOBLOCKS (TSM R)

PRODUCT FEATURES

  • Easy installation. Foundation is not required since the pumpset works at the bottom of the well.
    		•
  • Water can also be drawn from a borewell which is bored at the bottom of the openwell by inserting a suction pipe into the Borewell and providing a cooling tank arrangement to keep the monoblock submerged in water.
    		•
  • Improved efficiency with all the advantages of
    mounting the prime mover and pump integrally on
    the same shaft.
    		•
  • Squirrel cage motor of wet type, water cooled designed to operate in a wide range of voltage variation 280 - 380 V, 50Hz, AC power supply.
    		•
  • Dynamically balanced rotors and impellers ensure vibration free performance and enhanced life.
    		•
  • The open well submersible monoblock can be placed at the bottom of the well. This arrangement does not require a suction pipe.
    		•

MATERIAL OF CONSTRUCTION

Part Name Material Part Name Material
Impeller Cast iron Motor body CI GR 180
Casing Cast iron Shaft AISI 410
Sleeve - Thrust bearing AISI 410-Asbestos1
Bearing bush LTB-41 Winding wire Polywrapped copper

APPLICATIONS

  • Irrigation (Flood, Sprinkler, Drip)
    		•
  • Industrial water supply
    		•
  • Drinking water supply
    		•
  • Cooling water circulating systems.
    		•

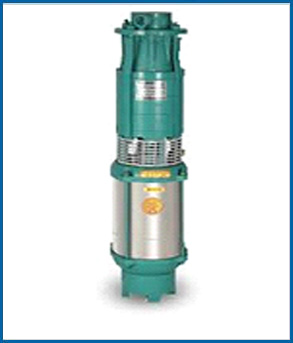

3 PHASE VERTICAL OPENWELL SUBMERSIBLE MONOBLOCS

Product Features

  • Easy installation. Foundation is not required since the pumpset works at the bottom of the well.
    		•
  • The multistage vertical openwell submersible monoblock can be placed at the bottom of the well. This arrangement does not require a suction pipe.
    		•
  • Improved efficiency with all the advantages of mounting the prime mover and pump integrally on the same shaft.
    		•
  • Water can also be drawn from a borewell which is bored at the bottom of the openwell by inserting a suction pipe into the Borewell and providing a cooling tank arrangement to keep the monoblock submerged in water.
    		•
  • Dynamically balanced rotors and impellers ensure vibration free performance and enhanced life.
    		•
  • Squirrel cage motor of wet type, water cooled designed to operate in 350 - 440 V, 50 Hz, AC power supply.
    		•

    Material Of Construction

    Part Name Material Part Name Material
    Impeller CI FG 200 Motor body CI GR 180
    Diffuser CI FG 200 Shaft 55C8
    Diffuser housing CI FG 200 Thrust bearing AISI 420-Carbon
    Bearing bush LTB-4 Winding wire Polywrapped copper

    Applications

    • Irrigation (Flood, Sprinkler, Drip)
      		•
    • Industrial water supply
    • Drinking water supply
      		•
    • Cooling water circulating systems.
      		•
